Calculating Slope and Common Slopes in Architecture


There are three different ways to indicate the slope of a surface relative to the horizontal plane: degrees, gradient, and percentage.

Calculating a Slope Gradient

Slope gradients are written as Y:X, where Y is a single unit in rise and X is the run.  Both numbers must use the same units.  For instance, if you travel 3 inches vertically and 3 feet (36 inches) horizontally, the slope would be 3:36 or 1:12.  This is read as a "one in twelve slope."

 Calculating the Slope Percentage

Slope percentage is calculated in much the same way as the gradient.  Convert the rise and run to the same units and then divide the rise by the run.  Multiply this number by 100 and you have the percentage slope.  For instance, 3" rise divided by 36" run = .083 x 100 = an 8.3% slope.


Calculating a Slope in Degrees

The most complicated way to calculate slope is in degrees and it requires a bit of high-school math.  The tangent of a given angle (in degrees) is equal to the rise divided by the run.  Therefore, the inverse-tangent of the rise divided by the run will give the angle.


DEGREES
GRADIENT
PERCENT
0.6°
1 : 95.49
1.0%
1°
1 : 57.29
1.7%
1.15°
1 : 50
2%
1.19°
1 : 48
2.08%
2.86°
1 : 20
5%
4.76°
1 : 12
8.3%
7.13°
1 : 8
12.5%
10°
1 : 5.67
17.6%
14.04°
1 : 4
25%
15°
1 : 3.73
26.8%
26.57°
1 : 2
50%
30°
1 : 1.73
57.7%
45°
1 : 1
100%
56.31°
1: 0.67
150%
60°
1 : 0.6
173.2%
 63.43°
1 : 0.5
200%
78.69°
1: 0.2
500%
89.43°
1 : 0.1
1000%
90°
1 : 0
 inf.












































THANKS

Read more
How to set Nikon BC 80 Total station setup
Topcon T S setup step by step with details
SOKKIA TS setup in Urdu
How To Build Strong Base For Road
CBR test Data Observations & Calculations


All about Civil engineering site works.
Posted by on No comments:

Tuesday, 13 March 2018

Road markings | Road lines | Road Surface marking

Road markings

Previous Page's
Read Page 2
Read Page 3 (You are here)

Road markings are a traffic sign in the form and design of a marking on the surface of the road. They have the same status as upright signs. Road users must obey these road markings. The diagrams below show the most common types of road marking and what they mean.

1). Single or double continuous white lines along the centre of the road

All traffic must keep to the left of the line (except in an emergency or for access).






2). Longer white lines / warning lines along the centre of the road


These warning lines alert drivers to hazards such as restricted vision, approach to a junction, approach to a roundabout, a hill, crests, bends and continuous white line ahead.



3). Short broken white lines along the centre of the road


These divide two lanes of traffic travelling in opposite directions. You must not cross them unless it is safe to do so.

4). Double broken white lines along the centre of the road

These alert drivers to continuous white lines a short distance ahead. As a driver, you must not cross them unless it is safe to do so.

_______________________________________________________________
Download Glober Mapper & Cracks  :  Click here
Download free mobile data recovery software full registered
Drfone-for-android  Click here
install Android 7.1.1 in laptop or PC  Click here
Or
Download Wondershare Filmora Video Editor 7.3.0.8 + Serial Key Click here
_______________________________________________________________

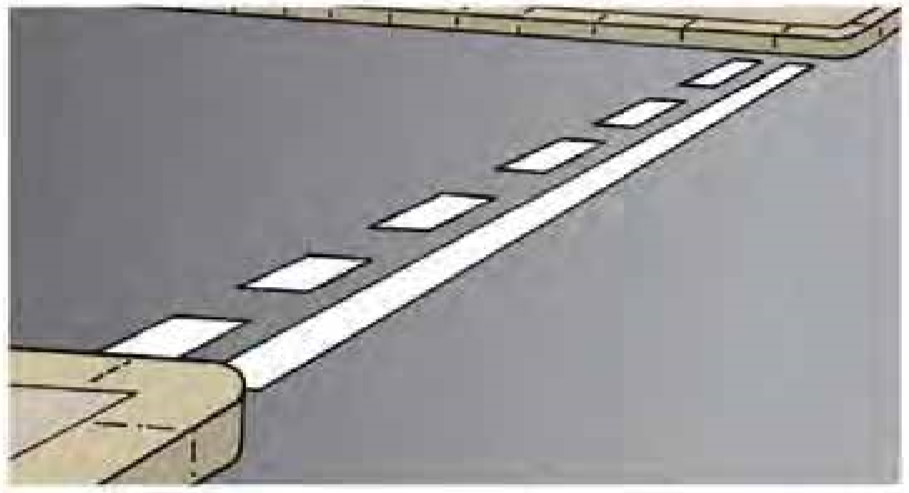

5). A broken white line with a single white line along the centre of the road
